Description:

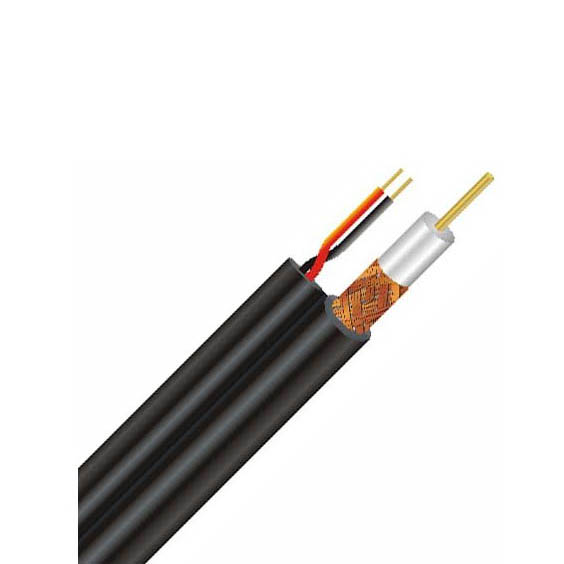

1) Construction:
Center Conductor: 0.81mm Bare Copper
Dielectric: 3.70mm Foamed PE
Braid Coverage: 95% Copper Braid
Jacket: 6.15mm PVC/PE
2-18
Center Conductor:7X0.404 Copper
Dielectric: 1.52mm Solid PE
Jacket: (2-18): 3.81mm
2) Characteristics
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Return Loss: >=20dB
Power Wire:12V
3) Attenunation[@ 68 F. (20.)]
5MHz 2.7dB/100 m
55MHz 6.4dB/100 m
211MHz 12.5dB/100 m
270MHz 14.0dB/100 m
300MHz 14.6dB/100 m
330MHz 15.6dB/100 m
400MHz 17.0dB/100 m
450MHz 18.1dB/100 m
550MHz 20.2dB/100 m
750MHz 23.8dB/100 m
870MHz 25.7dB/100 m
1000MHz 27.8dB/100 m
