Description:

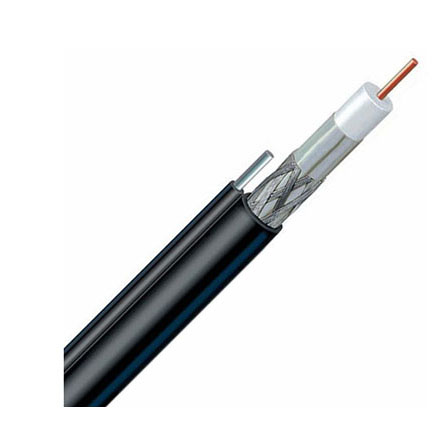

1) Construction
Center Conductor: 2-0.81mm Bare Copper/Copper Clad Steel
Dielectric: 3.66mm Foam PE
Shield: Bonded Aluminum Foil
Braid Coverage: 60% Aluminum braid
Jelly/APD: Per Customer s Special Requirement
Jacket: 6.15mm PVC
Messenger:1.30mm Steel
2) Characteristics
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Return Loss: >=20dB
3) Attenunation[@ 68 F. (20C.)]
5MHz 2.7dB/100 m
55MHz 6.4dB/100 m
211MHz 12.5dB/100 m
270MHz 14.0dB/100 m
300MHz 14.6dB/100 m
330MHz 15.6dB/100 m
400MHz 17.0dB/100 m
450MHz 18.1dB/100 m
550MHz 20.2dB/100 m
750MHz 23.8dB/100 m
870MHz 25.7dB/100 m
1000MHz 27.8dB/100 m
